Machinery

We specialise in the design and manufacture of complex injection mould tooling, on site and overseas.
We offer the manufacture of jigs, fixtures as well prototype tooling through resin moulds, soft tools and 3D printing capabilities.

In house tooling

In house design and tool making coupled with our overseas tool making sources enable us to maintain the highest quality and competitive prices that our customers expect. All tooling is subject to a full feasibility study and mould flow analysis subject material choice, this ensures that the tooling life exceeds the requirement of the customers demands. Timing plans are presented and maintained to ensure all deliveries are made in line with schedules.

Maintenance and Repairs

Our own tool room together with our selected UK sub-contracted toolmakers ensures that any tooling, modifications or repairs that need carrying out are done quickly and correctly to ensure that production is never effected.

List of injection molding machines

No of M/C′s	Name / Model	Clamping force (t)	Screw dia (mm)	Min. tool height (mm)	Max. tool height (mm)	Max. shot weight (g)	Rotary table (2K)
1	Demag NCIII 50	50	ø25	130	300	78
1	Demag NCIII 110	110	ø40	145	450	225
1	Borche BD130	130	ø30	150	480	109
1	Borche BS150	150	ø45	160	500	341
2	Borche BS200	200	ø50	180	550	452
1	Toffine 220	220	ø55	195	560	523
1	Sandretto 300	300	ø70	200	670	1420
5	Borche BS320	320	ø70	220	655	1266
1	Engel 350	350	ø70	200	660	1310	3t
1	BMB 350	350	ø75	180	680	1420	3t
3	Borche BS400	400	ø80	245	720	1890
2	Demag NCIII420	420	ø80	380	820	1785
2	Borche BS560	560	ø85	300	850	2323
1	Demag 650	650	ø95	450	950	1895
2	Borche BS650	650	ø90	300	870	2690
1	Borche BS800	800	ø100	380	975	3687
1	Borche BU800	800	ø100	380	975	3687
1	Borche BU1200	1200	ø110	600	1250	5071	1720 dia 10t
1	Bole DKC1300	1300	ø110 / 60	500	1300	5199 / 754	1800 dia 10t
1	Borche BU1500V	1500	ø115	700	1400	5671
1	Demag NCIII 1800	1800	ø145	900	1600	7800
2	Borche BU2200	2200	ø140	800	1500	9105	2340 dia 15t

Types of injection molding machines used

We currently use these types of Borche injection molding machines for the production of plastic parts:

Borche Bi

The Bi series is able to connect peripherals and implement two-way data communication that integrates peripheral information into the machine's control unit. The Bi series can be connected to PC or mobile phone. The user can easily monitor the condition of the machines using connectivity and built-in sensors.

Borche BS III

The BS-Ill Servo series is equipped with an adequate power supply system, high-precision control, stable performance, high versatility and three chamber sizes, which can meet a variety of production requirements.

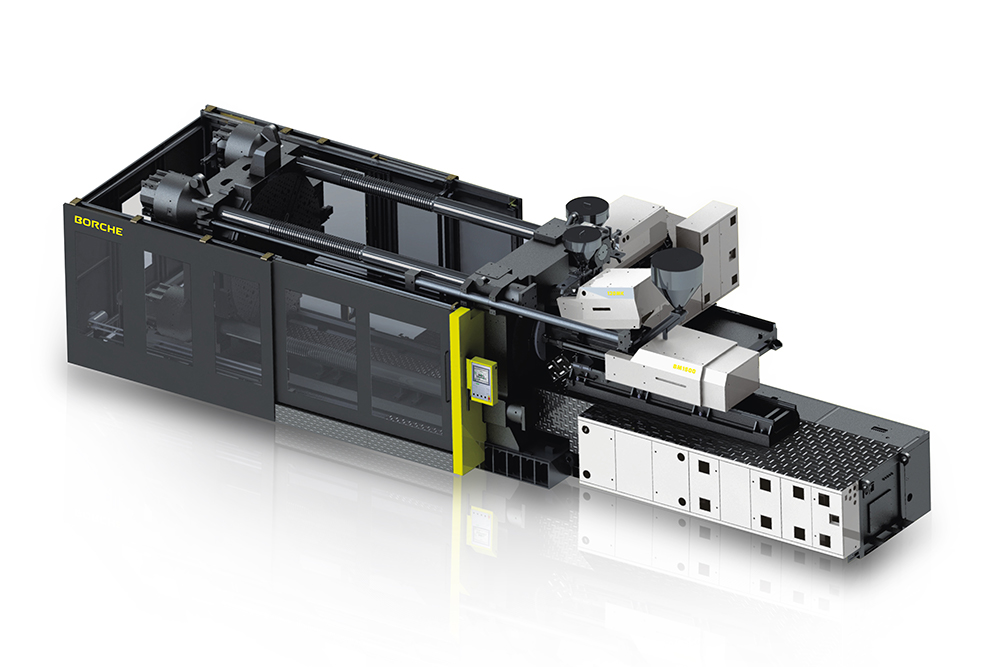

Borche BM

The BM series multi-component machines provide stable, accurate and flexible solutions for a wide variety of production requirements. With many years of experience in this category, we can implement multi-component 2K injection molding in one production process on a given machine.

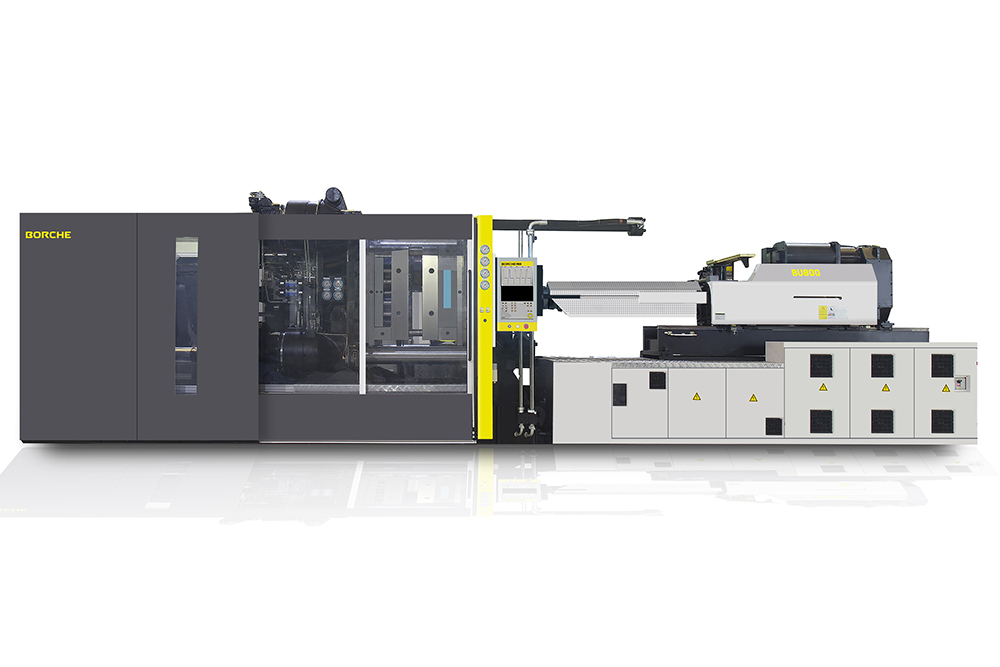

Borche BU

The BU series two-plate injection molding machines are most often used for the production of parts and components for the aerospace, automotive, transportation and construction industries. The IMM interface enables intelligent connection of operators, peripherals and robots. All devices are thus under control with constant data mapping, which ensures the optimization of production costs.
